PRODUCT DESCRIPTION

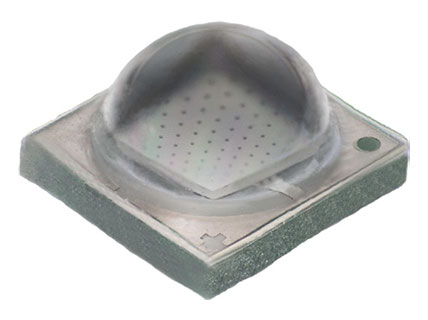

XLamp® XP-G3 LEDs are optimized for directional, high-lumen lighting applications where efficacy and optical control are critical, such as roadway, portable and horticulture. The compact and proven 3.45‑mm XP platform has an excellent ecosystem of optics and system solutions available, enabling lighting manufacturers to simplify their design process and shorten time-to-market.

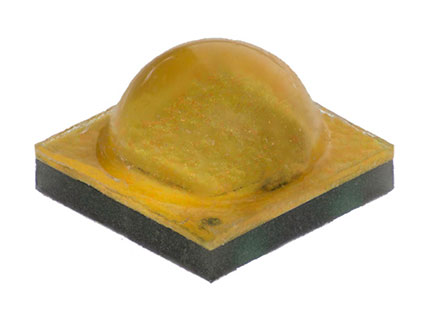

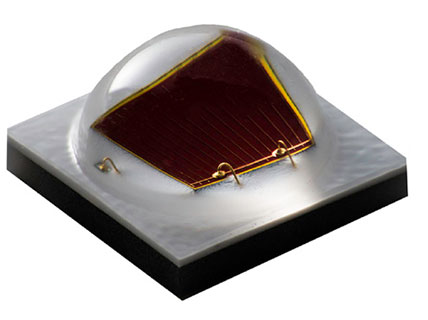

XP‑G3 LEDs are available in royal blue, photo red and two different white versions. White (Standard) delivers best-in-class TM‑21 lifetimes and color stability over time. White (S Line) improves on the Standard version: better system‑level reliability through switching and dimming cycles, improved resistance to sulfur exposure and higher efficacy. With this S Line version, Cree delivers high‑power LED technology that is optimized for robust lighting applications where sensors and the internet-of-things (IOT) are becoming common.
FEATURES
•Available in no CRI minimum white, 70-, 80- and 90-CRI white, royal blue & photo red
•ANSI‑compatible chromaticity bins
•3-step and 5-step options
•White binned at 85 °C, royal blue & photo red binned at 25 °C
•Maximum drive current: white, royal blue: 2000 mA, photo red: 1500 mA
•Low thermal resistance: white: 3 °C/W, royal blue: 2 °C/W, photo red: 2.5 °C/W
•Wide viewing angle: 125°–130°
•Unlimited floor life at ≤ 30 ºC/85% RH
•Reflow solderable ‑ JEDEC J‑STD‑020C
•Electrically neutral thermal path
•RoHS and REACh compliant
•UL® recognized component (E349212)
