PRODUCT DESCRIPTION

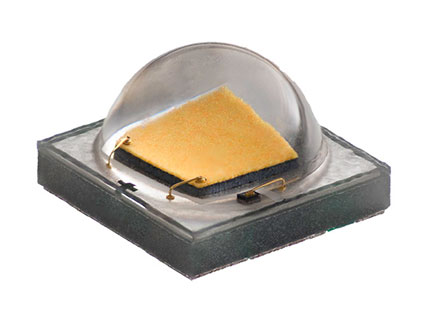

The original XLamp® XP-G2 LED pioneered a broad set of LED applications for the industry, including outdoor and area lighting, and has since served as a preferred choice by manufacturers that require advanced output, efficacy and optical control. The compact and proven 3.45-mm XP platform has an excellent ecosystem of optics and system solutions available, enabling lighting manufacturers to simplify their design process and shorten time to market.

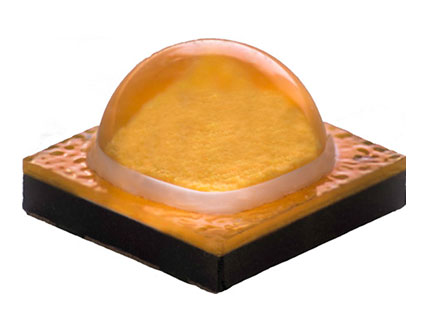

XP-G2 LEDs are now available in two different White versions: Standard and High Efficacy (HE). XP-G2 Standard is the same breakthrough product that enabled a broad set of new LED applications for ceramic high-power LEDs.
The new High Efficacy version extends this legacy with a drop-in upgrade for existing designs optimized around XP-G2 LEDs. XP-G2 HE LEDs leverage Cree’s latest high-power chip technology to deliver 25 percent more light output via a higher maximum current of 2000 mA, higher efficacy and lower thermal resistance.
FEATURES
•Available in white, outdoor white and 80-, 85- and 90-CRI white
•ANSI-compatible chromaticity bins
•Binned at 85 °C
•Maximum drive current: Standard: 1500 mA, HE: 2000 mA
•Low thermal resistance: Standard: 4 °C/W, HE: 3 °C/W
•Wide viewing angle: Standard: 120°, HE: 125°
•Unlimited floor life at ≤ 30 ºC/85% RH
•Reflow solderable - JEDEC J-STD-020C
•Electrically neutral thermal path
•RoHS and REACh compliant
•UL® recognized component (E349212)
