PRODUCT DESCRIPTION

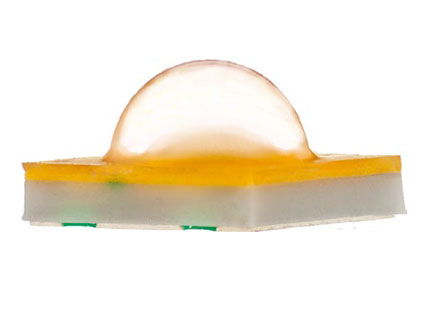

XLamp® XP-E High-Efficiency White (HEW) LEDs upgrade the XLamp XP-E LED to leading performance levels for diffuse lighting applications. The XP-E HEW is designed to enable faster adoption of LED light in cost-sensitive, consumer lighting products. Compared to the standard XLamp XP-E LED, the XP-E HEW can reduce LED count by 50% and still deliver the same system performance.
Cree XLamp LEDs bring high performance and quality of light to a wide range of lighting applications, including color-changing, portable and personal, outdoor, indoor-directional, transportation, stage and studio, commercial and emergency-vehicle lighting.
FEATURES
•Light output and efficacy similar to XLamp XP-G LED
•Maximum drive current: 1000 mA
•Low thermal resistance: 6 °C/W
•Maximum junction temperature: 150 °C
•Wide viewing angle: 120°
•Reflow solderable - JEDEC
J-STD-020C compatible
•Electrically neutral thermal path
•RoHS and REACh compliant
•UL® recognized component
(E349212)
