PRODUCT DESCRIPTION

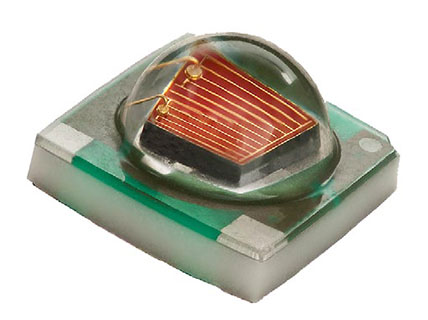

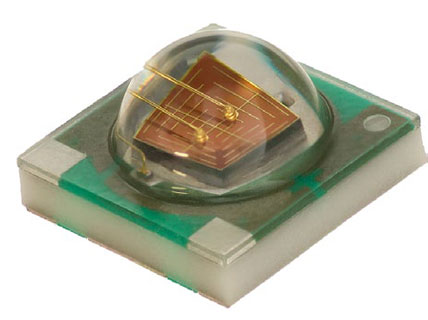

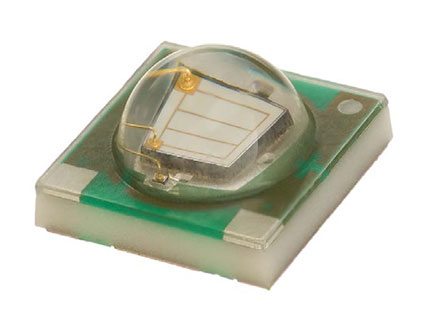

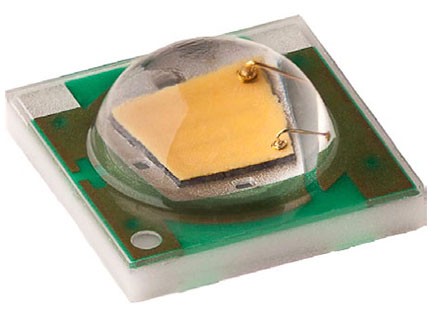

The XLamp® XP-E LED combines the proven lighting-class performance and reliability of the XLamp XR-E LED in a package with 80% smaller footprint. The XLamp XP-E LED continues Cree’s history of innovation in LEDs for lighting applications with wide viewing angle, symmetrical package, unlimited floor life and electrically neutral thermal path.
Cree XLamp LEDs bring high performance and quality of light to a wide range of lighting applications, including color-changing, portable and personal, outdoor, indoor-directional, transportation, stage and studio, commercial, horticulture and emergency-vehicle lighting.
FEATURES
•Available in white, 80-CRI, 85-CRI and 90-CRI white, royal blue, blue, green, amber, red‑orange, red, High Efficiency (HE) photo red & far red
•Maximum drive current: up to 1 A
•Low thermal resistance: as low as 8 °C/W
•Maximum junction temperature: 150 °C
•Wide viewing angle: 115°‑130°
•Unlimited floor life at ≤ 30 °C/85% RH
•Reflow solderable ‑ JEDEC J‑STD‑020C compatible
•Electrically neutral thermal path
•RoHS and REACh compliant
•UL® recognized component (E349212)
