Product Description

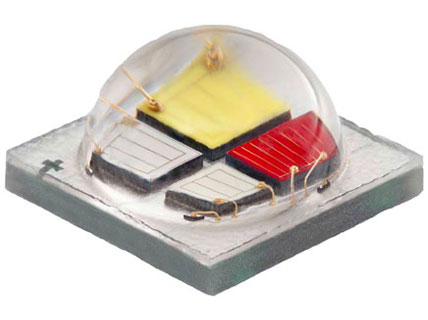

The XLamp® XM-L Color LED is a multicolor LED that provides high lumen output in a small package. Compared to discrete LEDs, XLamp XM-L Color LEDs reduce the distance between LED die, creating a
small optical source for excellent optical control and efficient color mixing. XLamp XM-L Color LEDs can reduce LED system complexity by reducing the number of components required. Cree XLamp XM-L Color LEDs bring high performance and quality of light to a wide range of lighting applications, including color-changing lighting, stage lighting, architectural lighting, indoor directional lighting, and entertainment lighting.
FEATURES
• Available in red, green, blue and white in a single 5 mm x 5 mm package
• Maximum drive current per LED die:
1 A
• Individually addressable LEDs
• Reflow solderable – JEDEC J-STD-020
• Electrically neutral thermal path
• RoHS compliant
