PRODUCT DESCRIPTION

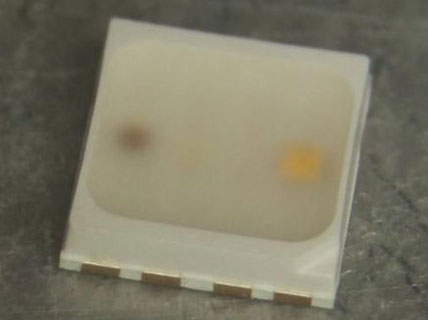

These SMD LEDs are packaged in an industry standard PLCC8 package.These high performance 4 color SMT LEDs are designed to work in a wide range of applications. A wide viewing angle and high brightness make these LEDs suitable for signage applications.
FEATURES
• Size (mm):5.0 x 5.2 x 1.1
• Dominant Wavelength/CCT
Red (619 - 624nm)
Green (520 - 535nm)
Blue (460 - 475nm)
White(3000K/4000K/5000K/5700K)
• Luminous Intensity (mcd)
Red (3000-5860)
Green (7030-14400)
Blue (1824-4180)
White (5860-12000)
• Moisture Sensitivity Level: 5a
• Lead-Free
• RoHS Compliant
APPLICATIONS
• Architecture Lighting
• Decorative Lighting
• Amusement
