PRODUCT DESCRIPTION
Optimized for directional, high-lumen applications, from indoor and outdoor to portable and lamp retrofits, the XLamp® XT-E LED delivers high performance and high reliability in the industry-standard XP/XT footprint. The XT-E LED offers the benefits of the XT/XP platform — compact and proven 3.45 mm x 3.45 mm package and established ecosystem — enabling lighting manufacturers to simplify the design process and shorten time to market.

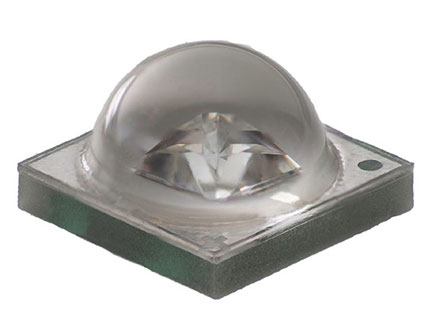

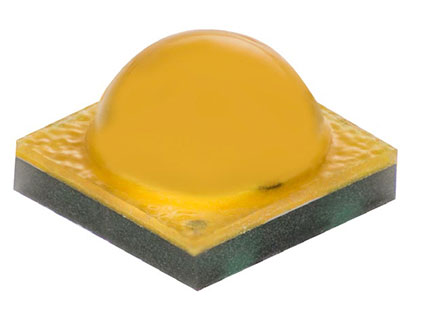

The XT-E LED is available in royal blue and white. The XT-E White LED offers a high-efficacy option. In this document, the term White denotes the white XT-E LED without regard to its efficacy. The terms Standard and High Efficacy are used when necessary to differentiate the performace of the High Efficacy XT-E LED from the XT-E LED without the high-efficacy option.
FEATURES
•Maximum Vf for High Efficacy XT-E White: 2.85 V
•Available in 70-, 80- and 90-CRI minimum white
•Binned at 85 °C
•Available in 2200 K CCT
•Thermal resistance: 5 °C/W
•Wide viewing angle: 115°-140°
•Maximum drive current: White 1.5 A, Royal Blue 1.5 A
•Electrically neutral thermal path
•Vf binning supported for XT-E White and Royal Blue
•XT-E Royal Blue sorted into 2.5-nm-wavelength bins
•Unlimited floor life at ≤ 30 ºC/85% RH
•Reflow solderable - JEDEC J-STD-020C compatible
•RoHS and REACh compliant
•UL® recognized component (E349212)
