PRODUCT DESCRIPTION

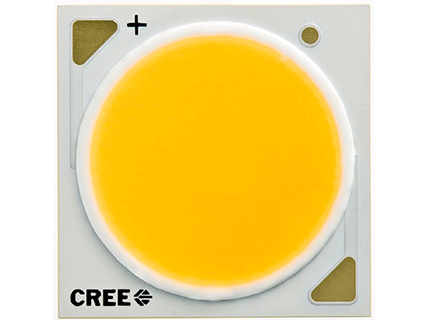

The XLamp® CXA2530 LED array expands Cree’s family of high‑flux, multi‑die arrays, offering high performance in an easy‑to‑use platform. With XLamp LED lighting‑class reliability, the CXA2530’s uniform emitting surface enables both directional and non‑directional lighting applications and luminaire designs. Available in 2‑step and 4‑step color consistency, and featuring a 19‑mm optical source, the CXA2530 brings new levels of flux and efficacy to this form factor.
The CX Family LED Design Guide provides basic information on the requirements to use the CXA2530 LED successfully in luminaire designs.
•Available in 4‑step, 3‑step and 2‑step EasyWhite® bins at 2700 K, 3000 K, 3500 K, 4000 K & 5000 K CCT and
4‑step EasyWhite bins at 5700 K & 6500 K CCT
•Available in ANSI white bins at 4000 K, 5000 K, 5700 K & 6500 K CCT
•Available in 70‑, 80‑, 90‑ and 93‑minimum CRI options
•Forward voltage option: 36‑V class
•85 °C binning and characterization
•Maximum drive current: 1600 mA
•115° viewing angle, uniform chromaticity profile
•Top‑side solder connections
•Thermocouple attach point
•NEMA SSL‑3 2011 standard flux bins
•RoHS‑ and REACh‑compliant
•UL® recognized component
(E349212)
